Features
- Extend Your Swimming Season: The TURBRO Beluga series pool heat pump is designed to maintain a consistent pool temperature, allowing you to enjoy swimming during cooler spring and fall days; please note that it is not intended to turn your pool into a hot tub

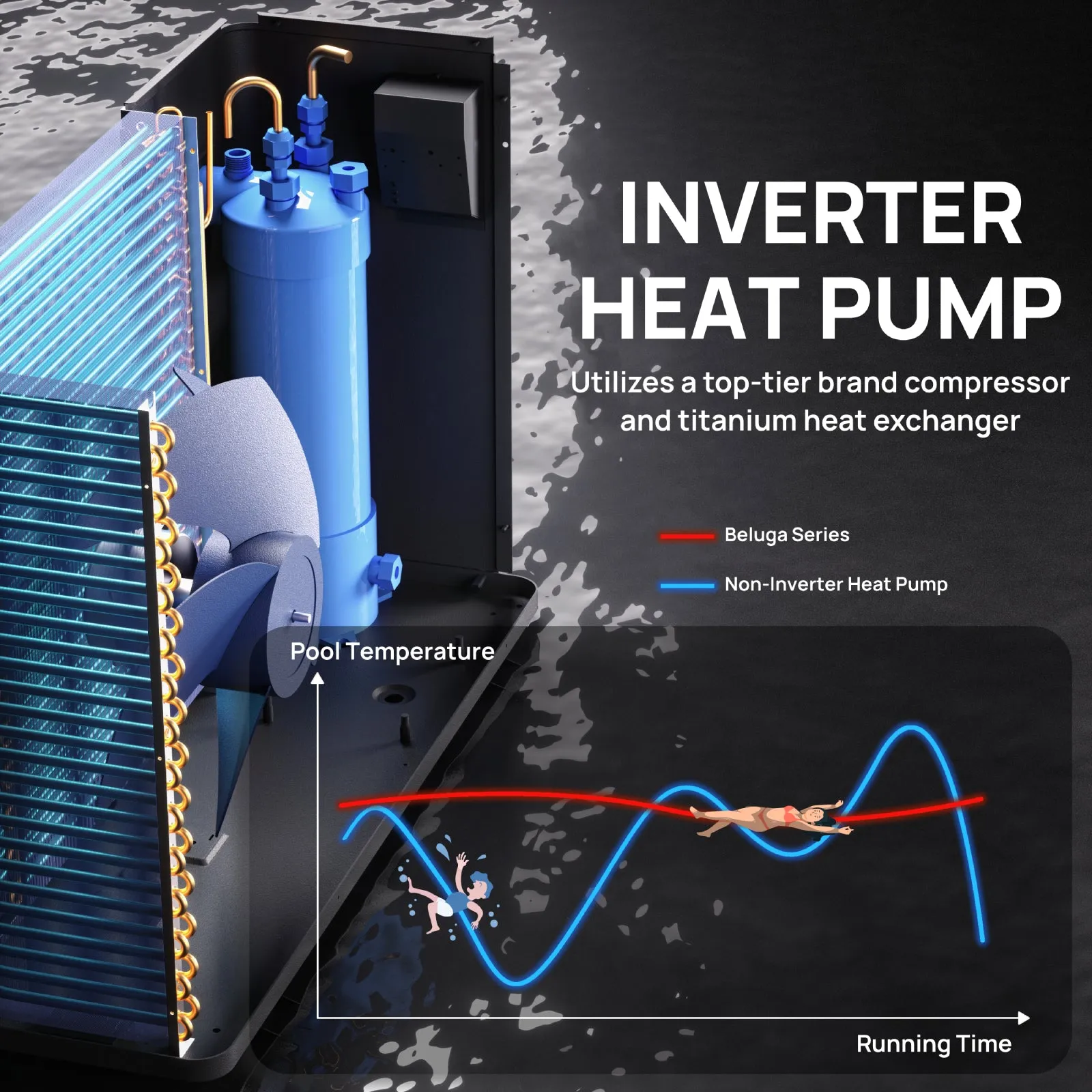

- Inverter Technology: The Beluga series features a renowned brand’s full DC inverter compressor; intelligently adjusts the heating power based on ambient temperature, water flow, and set temperature to ensure a stable water temperature

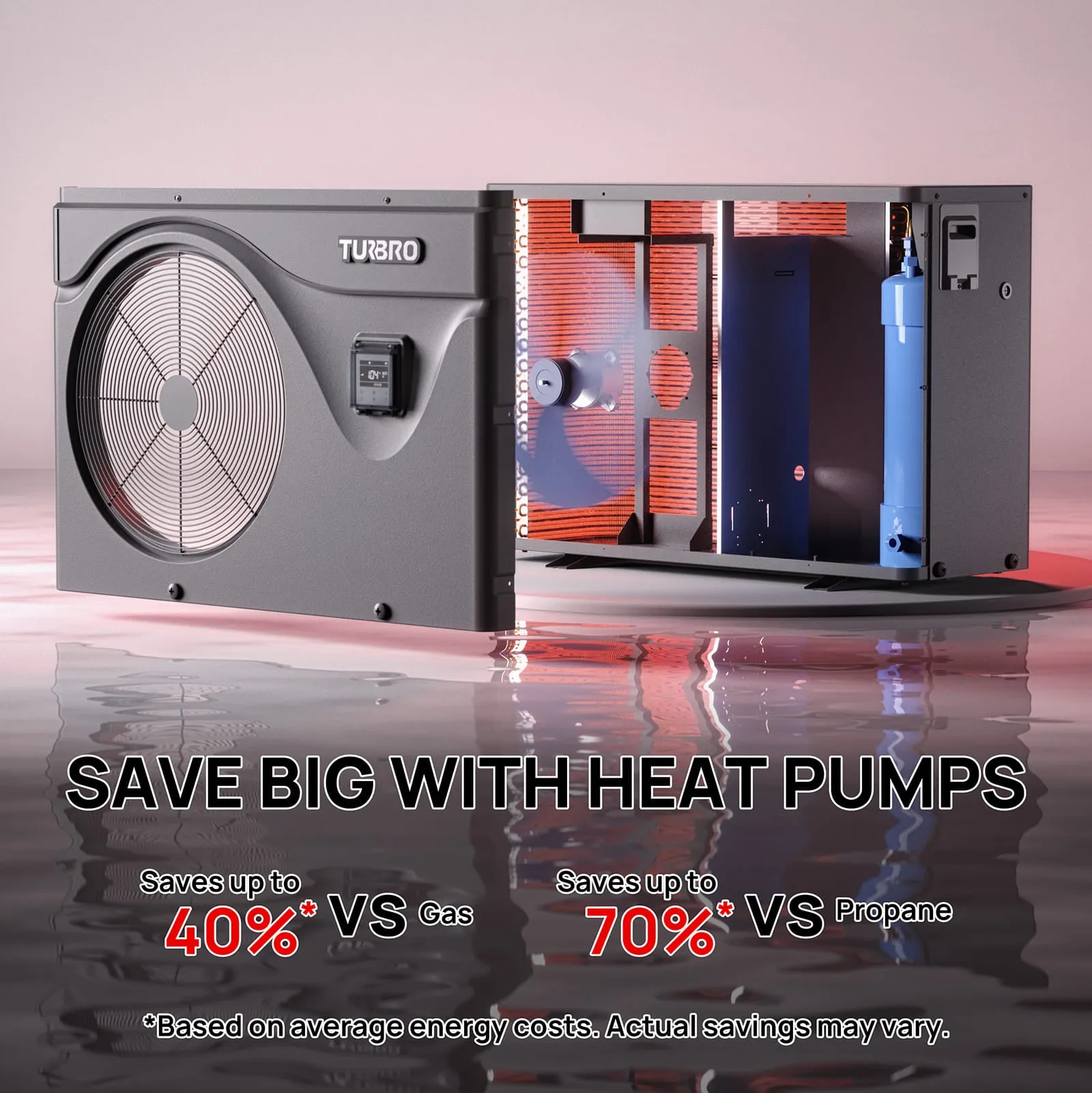

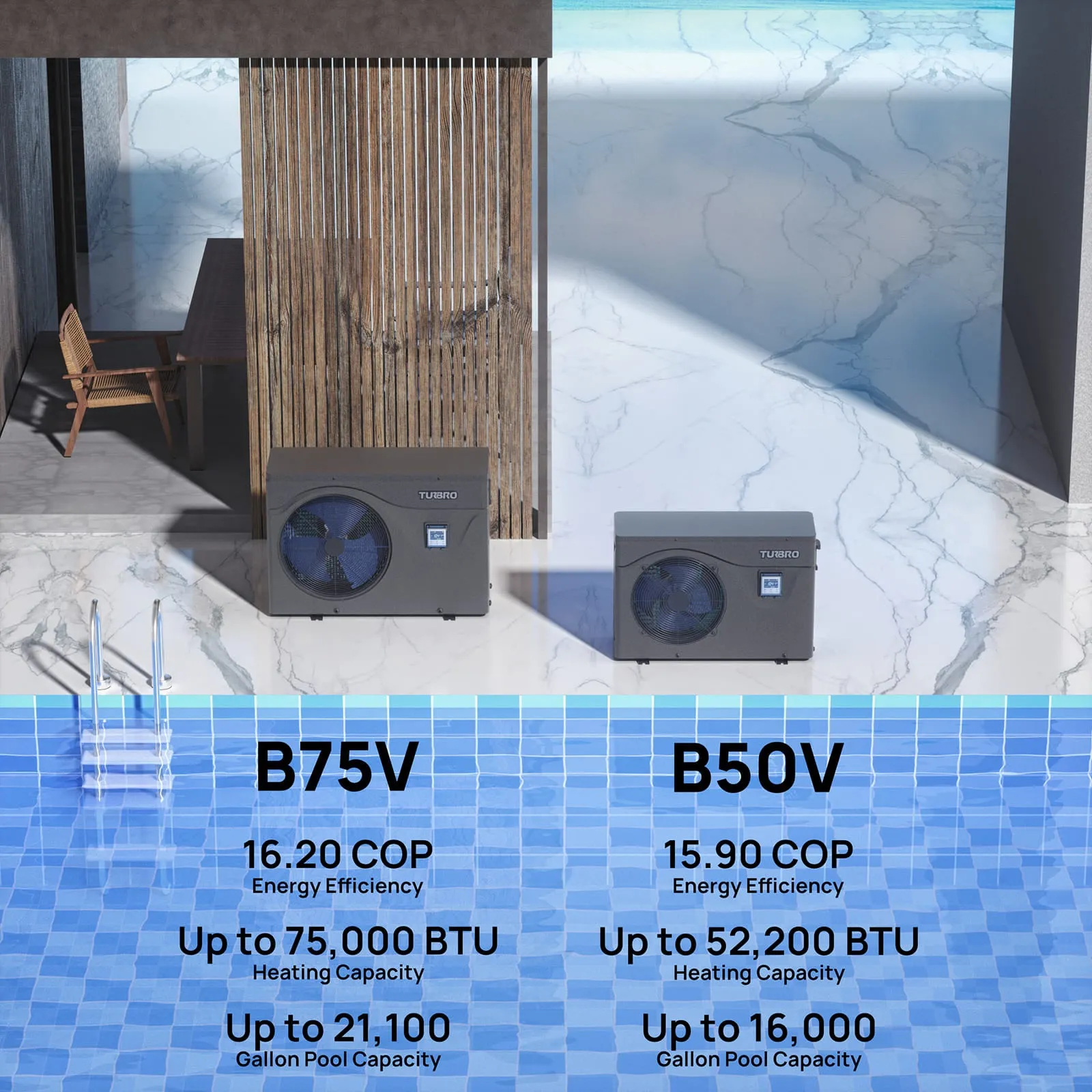

- Cost-Saving Choice: Harnesses heat from the air rather than generating heat; cut costs by up to 40% compared to using natural gas and up to 70% compared to propane; B50V features a heating capacity of up to 52,200 BTU and a COP rating of up to 15.9; B75V features a heating capacity of up to 75,000 BTU and a COP rating of up to 16.2
- For Variable Pools: B50V suits swimming or spa pools up to 16,000 gallons (maximum size of 24.6-foot round or 30 by 20-foot oval); B75V suits pools up to 21,100 gallons (maximum size of 28.3-foot round or 20 by 40-foot oval); not recommended for inflatable pools due to low water pressure
- Saltwater Compatibility: Features a titanium heat exchanger; corrosion resistant to chemicals and saltwater; compatible with seawater pools

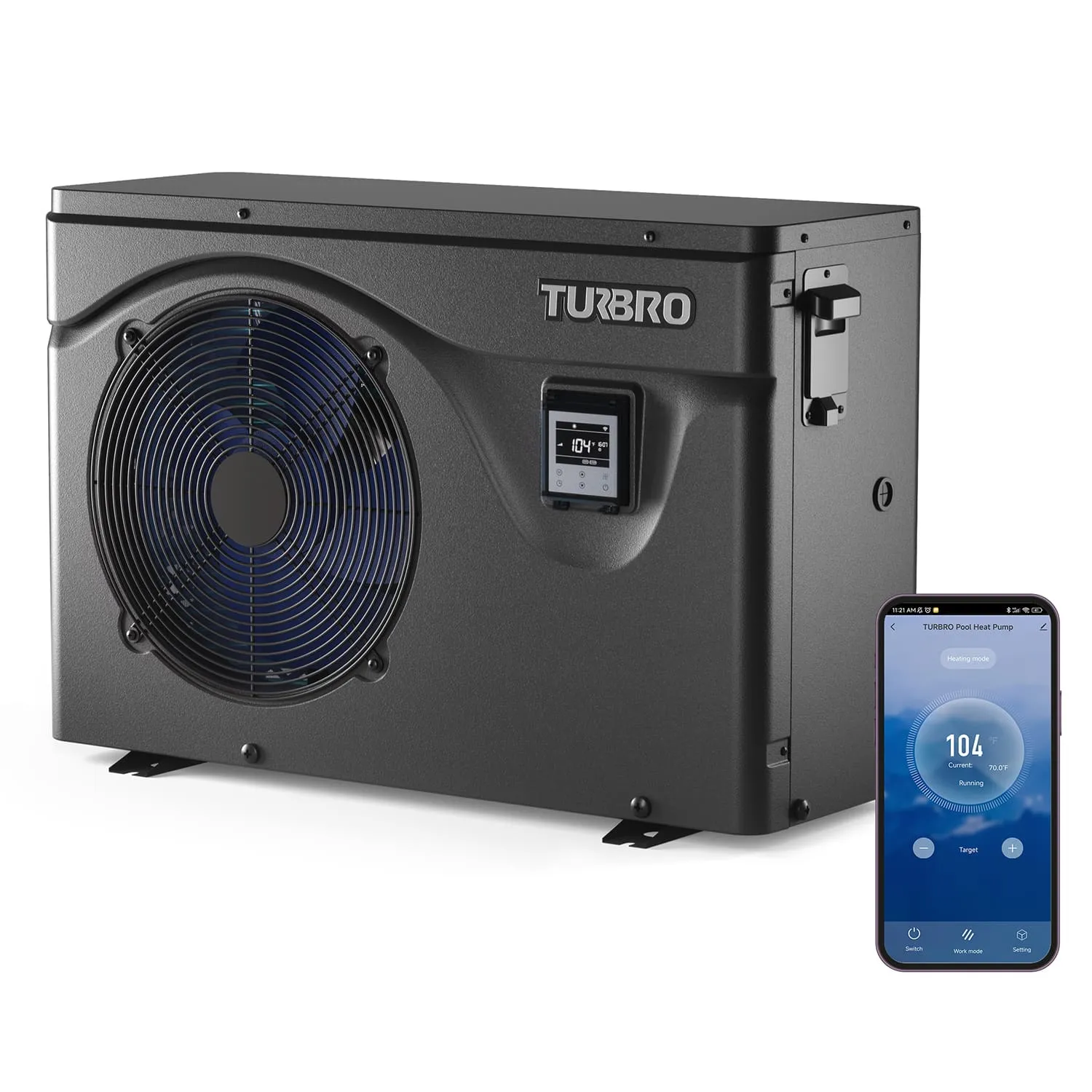

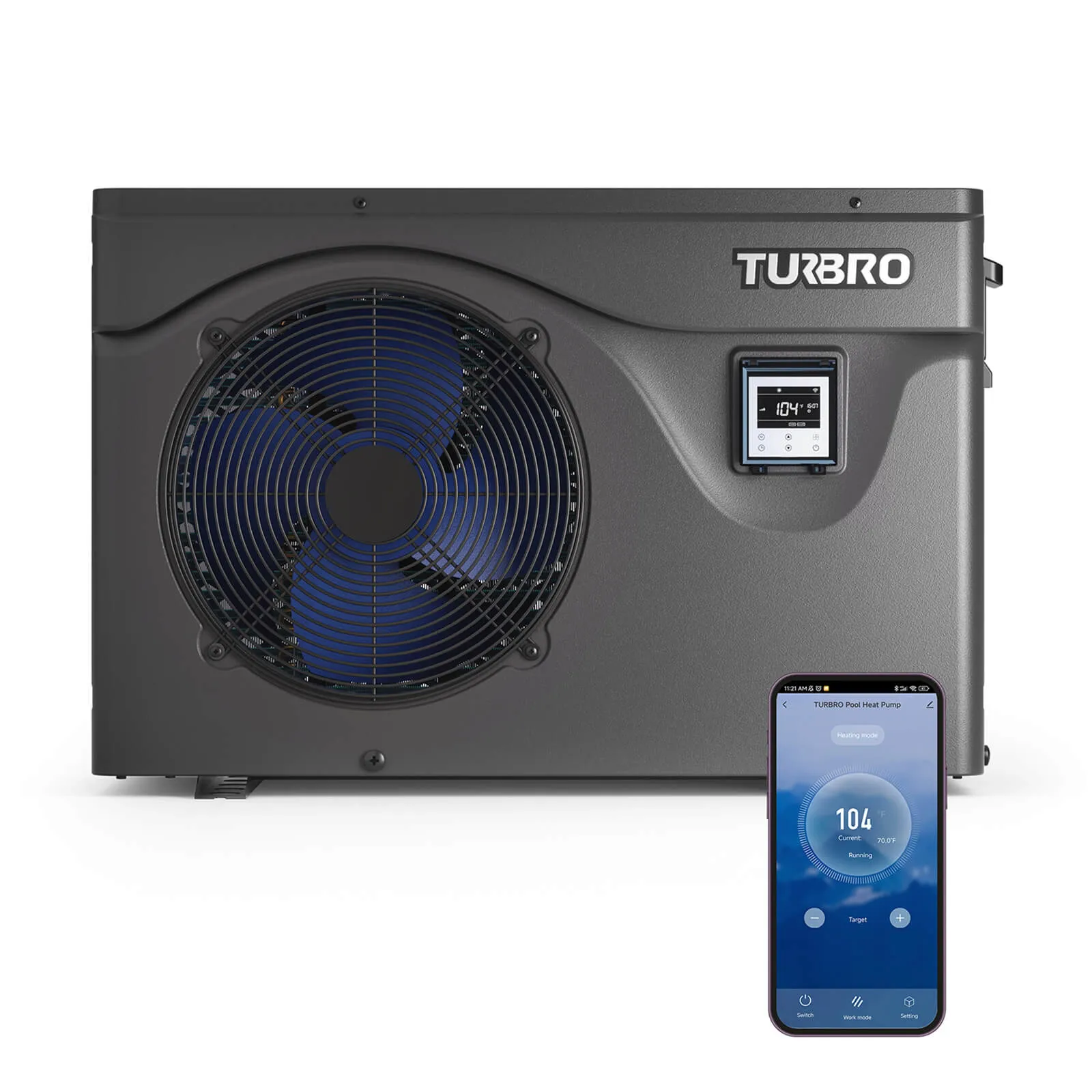

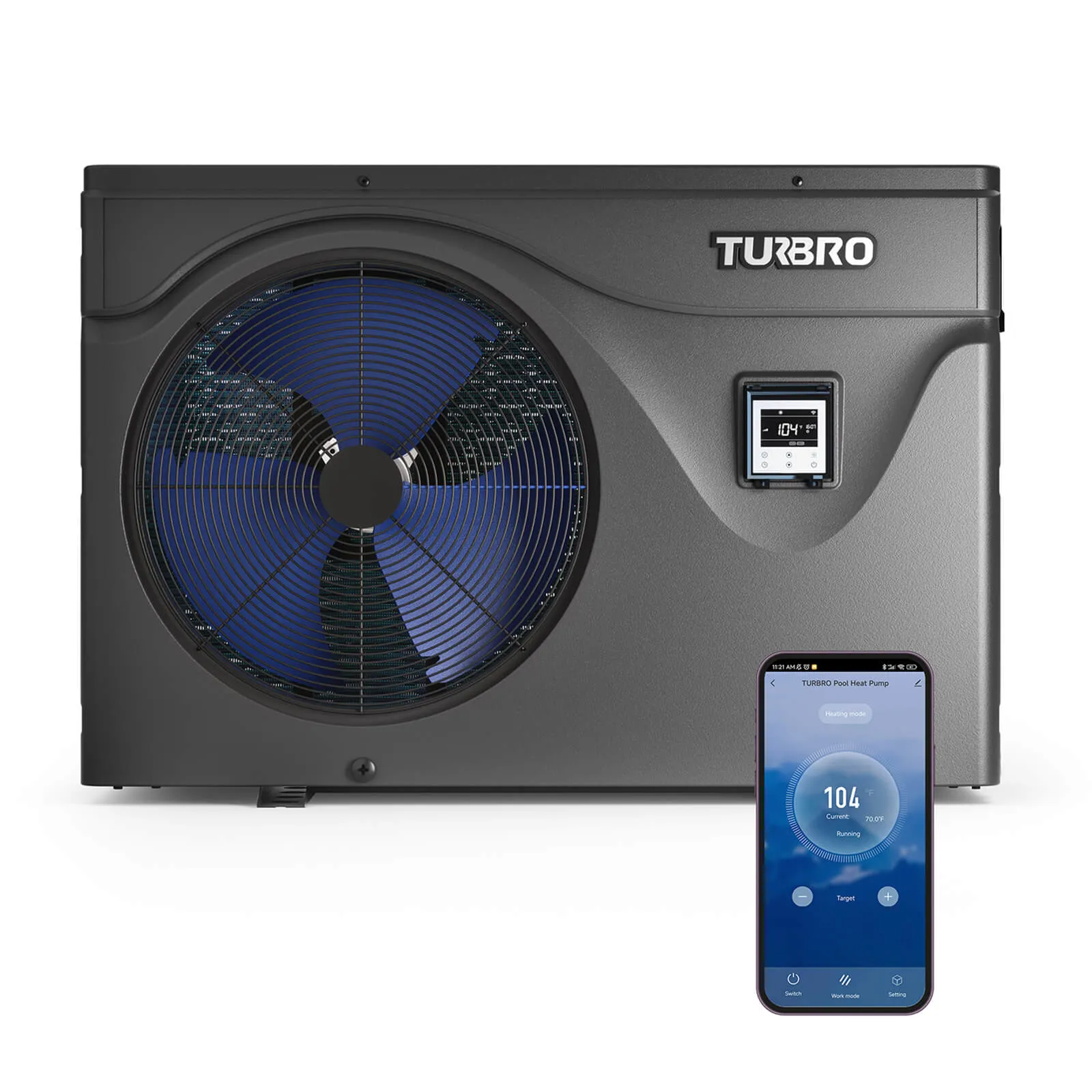

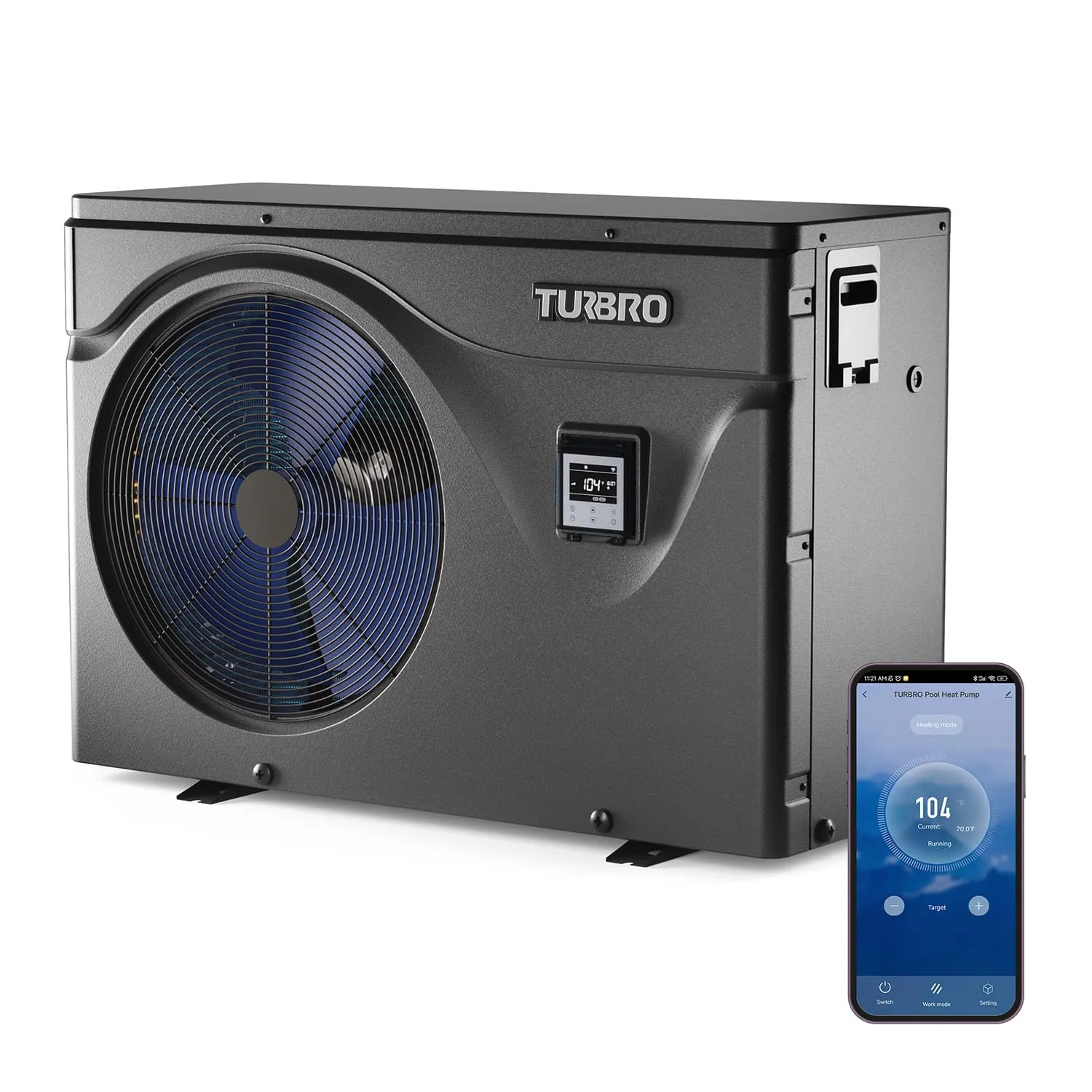

- Smart Control: Operates through an intuitive control panel or via a mobile app; can set two timer periods, easily managed from either the panel or your smartphone
- Safe Use: Features multiple built-in sensors to monitor inlet and outlet water temp., ambient temp., current, voltage, pressure, water flow, and other critical operational parameters; displays corresponding error codes and shuts down when a fault occurs, ensuring safety and preventing further damage

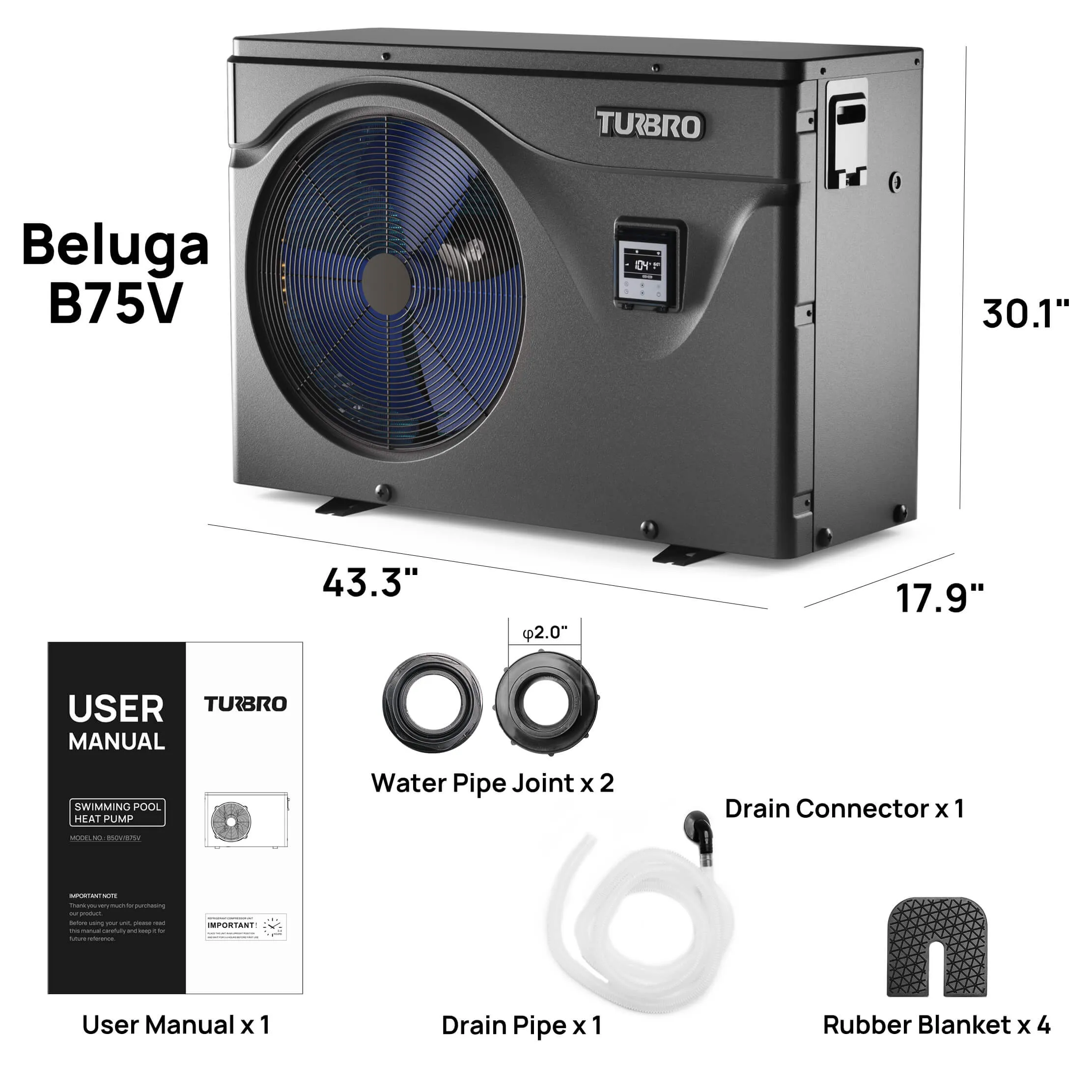

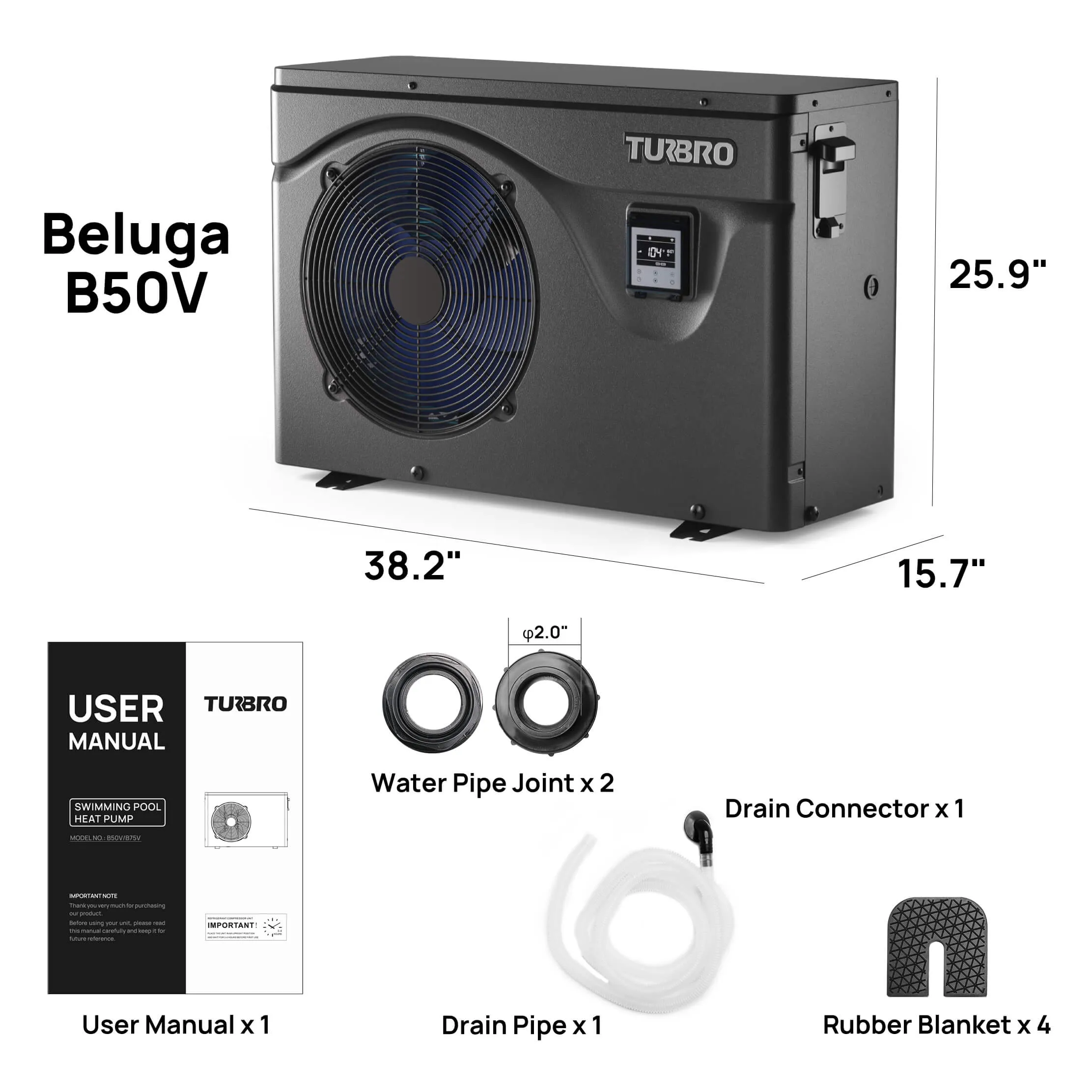

- Professional Installation Needed: Requires a certified electrician to set up a hardwired connection to a 220-240 V power supply; comes with rubber blankets, drain connectors, a drain pipe, water pipe joints, and an installation guide; excludes water hoses, valves, pool filters, water pumps, or chlorinators
Air Source Heat Pump
By absorbing from the air, TURBRO electric pool heat pump delivers consistent and reliable heating while minimizing influences on the environment.
Factors Affecting Performance
The heating effectiveness of your pool heater can be affected by various factors including ambient air temperature, water volume, pool insulation quality, wind exposure, proper installation and maintenance, and other factors.
FAQs
-
Q: Can it heat a saltwater pool?
A: Yes. The unit is equipped with a titanium heat exchanger, which is corrosion-resistant. However, please ensure that the heat pump is installed upstream of the saltwater pool and a check valve is installed between them to prevent any backflow. -
Q: Can the unit operate year-round?
A: It can heat the water from 59-104℉ in ambient temperatures ranging from 14-104℉. -
Q: Why is the heating performance not as good as I expected?
A: Heating performance can be affected by various factors such as ambient air temperature, water volume, pool insulation quality, wind exposure, proper installation, and maintenance.
Specification
|
|
|
|
|
|
Model |
|||
|
Power Supply |
110-120 V / 60Hz |
220-240 V / 50-60 Hz |
|
|
Rated Power |
1,050 W |
220-2,350 W |
290-3,258 W |
|
COP |
5.58 |
Up to 15.9 |
Up to 16.2 |
|
Maximum Heating Capacity |
20,000 BTU |
52,200 BTU |
75,000 BTU |
|
Maximum Input Current |
13.5 A |
14.5 A |
18.8 A |
|
Recommended Wire Gauge |
/ |
12 AWG |
|
|
Minimum Breaker Size |
15 A |
30A Double Pole |
|
|
Refrigerant |
R410A |
R32 |
|
|
Ambient Temp. Range |
23-104℉ |
14-109℉ |
|
|
Setting Temp. Range |
59-104℉ |
||
|
Rated Water Flow |
8.80 GPM |
29.10 GPM |
40.10 GPM |
|
Water Pipe Connection |
1.25” or 1.50” |
2.00” |
|
|
Waterproof Level |
IPX4 |
||
